REVO-PC Power Management System

About REVO-PC

REVO-PC is designed to control multi-zone, multi-loop heating loads. It minimises peak loads and harmonics by distributing demand evenly over time.
One REVO-PC unit can control:

• 8, 16 or 24 single phase loads
• 8 three phase loads utilising 2 phase or three phase switching

Each zone is processed independently with calculation of instant current, RMS current & power.

Easy to implement

Only a few parameters need to be entered to configure the REVO-PC system from CD Automation:

• Set the operating current of each heater zone
• Set the total power limit
• Set the power of each zone

Synchronization

REVO-PC's Live Predictive Synchronization automatically controls all zones, resulting in improved performance.

• Total current is equal to a sinusoidal wave form
• Power factor > 0.9
• Instantaneous current close to average value
• Minimisation of harmonics, with subsequent further power saving by harmonic reduction
• Elimination of flicker

Smart power limitation

Smart power limitation works in conjunction with synchronization. REVO-PC makes a live predictive calculation of power at each period & generates output values for the next period.

• If the calculated power is below the power limit, the previous values remain with each zone using full power.
• If the calculated power is above the power limit, the power of each zone is reduced proportionally to restrict maximum power demand, preventing any increase in energy tariffs imposed by the electricity supplier.

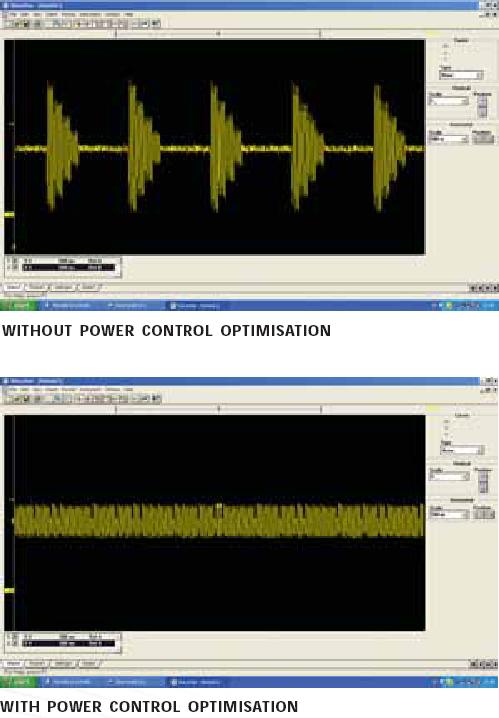

Overall, REVO-PC's power control optimisation saves on power costs and evenly distributes power demand.

Manufacturer: CD Automation
