SM61 Data Logger with Web Server

SM61 is a new and practical solution, which provides continuous visualization of process parameters by any web browser from the most distant places of the world. For communication with the SM61 you can use PC, tablet or mobile phone with a web browser.

Visualisation of current and archived data (synoptic maps, charts, tables) by any web browser. User configurable
Read and store up to 2500 values from slave devices (up to 100 devices, each 25 registers).
User-friendly application for data configuration.
Built-in FTP and web servers.
Alarms or binary inputs for control of archiving.
Real time clock.
Capacity for simultaneous access by many users.
User’s access control by a password.
1 GB Flash memory.

Manufacturer: Lumel S.A.

Data sheet Instruction manual

SM5 Logic Input to RS485/Modbus Converter

The SM5 logic input module reads relay input logic states and make them available to computerized systems working on the base of RS-485 interface.
The SM5 module has 8 logic inputs and RS-485 interface with MODBUS RTU and ASCII transmission protocols.
The programming of the modules is possible using RS-485 or RS-232 interface and LPConfig software.
Module parameters:

8 logic inputs,
RS-485 communication interface with MODBUS RTU and ASCII transmission protocols to operate in computerized systems,
configurable baud rate 2400, 4800, 9600, 19200, 38400, 57600, 115200 bits/s,
programming interface on the frontal plate of RJ type (RS232).

Manufacturer: Lumel S.A.

Data sheet Instruction manual

P20 Programmable Transducer for Temperature, Shunt and Standard Signal Inputs

The P20 programmable transducer is designed to convert temperature, resistance, voltage from shunt and standard signals into a standard 0/4020mA current or 0-10V voltage signal.
The output signal is galvanically insulated from the input signal and the supply.
The transducer is fully configurable through the PD14 programmer and free LPConfig software.
By means of the programmer one can change:

input type
averaging time of the measurement
rescale the analog output
read the measured value

Manufacturer: Lumel S.A.

Data sheet Instruction manual

P20Z RMS Transducer for AC Current or Voltage

The P20Z meaures RMS current or voltage and converts it to a standard d.c. current or d.c. voltage signal.
The transducer output signal is galvanically insulated from the input signal and the supply.
Features:

Input: 0...60 / 100 / 150/ 250/ 400 / 500 / 600 V a.c., 0...1 / 5 A a.c.,
Output: 0/4...20mA, 0...10V.
Output 4-20mA proportional to average current
External dimensions: 22,5 x 120 x 100mm

Manufacturer: Lumel S.A.

Data sheet Instruction manual

P30U Programmable Transducer for Temperature, Shunt and Standard Signal Inputs

P30U transducer is designed to convert temperature, resistance, standard voltage and current signals into a standard DC voltage or DC current signal. The output signal is galvanically isolated from the input signal and the power supply. P30U has programmable measurement and additional functions. Programming parameters can be realized with the use of buttons, via RS-485 interface and free e-con software or Ethernet or any web browsers via Ethernet interface.

input: programmable betweenthermocouples, resistance thermometers,0...4/20 mA, +/- 20mA, -5...20mV, +/- 75mV; +/-200mV, 400, 2000, 5500 ohm, RS485 Master or Slave
output: programmable
analog (current or voltage)
1 or 2 x relays
digital RS-485
display: LCD 2 x 8 characters backilit
supply: 85..253 V a.c./d.c. or 20...40 V a.c./20...60 V d.c.
custom 21 point linearisation of the input
Five internal math functions
Optional 24V DC 30mA power supply
Programmable alarms with indication
Real time clock with battaery backup
Optional recording to SD/SDHC card
Internal memory with the capacity of 534336 records,
Automatic decimal point setting,
Preview of configured parameters,
Access to parameters locked by a password,
Programming the measurement averaging time.

Manufacturer: Lumel S.A.

Data sheet Instruction manual

P30O Programmable transducer for pulses, frequency, rotational speed, period and working hours with Ethernet

Programmable transducer P30O type is destined to convert of number of pulses, number of working hours, frequency, period and rotational speed into a digital or standard current or voltage signal.

2 universal pulse inputs.
3 versions:
-with Ethernet and internal memory,
-with SD card,
-standard,
Mathematical functions for each input
Individual characteristic (up to 21 points) for each input
1 or 2 (option) alarm outputs
Optional transducer 24V DC power supply for transducers
RS-485 interface Modbus RTU Slave, Modbus TCP Slave (option)
data recording in:
-internal memory up to 4MB
-in external SD/SDHC card (option)
-or internal file system memory (8GB) (option)
Pushbutton configuration or via eCon software / RS485 or WWW server
Upgradeable firmaware
External dimensions: 45 x 120 x 100mm.

Manufacturer: Lumel S.A.

Data sheet Instruction manual

T23CT AC/DC Current Transmitter

The Hallotron T23CT transducer is designed for continuous conversion of DC and AC RMS into a standard DC 4-20mA signal. The transducer is designed to be mounted directly on a conducting bus bar where the flowing current generates a magnetic field. Using the Hall effect, the sensor generates an electrical voltage proportional to the current. In the further part of the electronic circuit this voltage is converted into a current output signal.

Available primary current ranges are 50/100/150/200/250/300A depending on order code
The output signal is galvanically isolated from the input signal.
Mounting directly on the busbar using mounting screws, or on the panel, or on a 35 mm din rail using additional fasteners
Plastic body with spring terminals that allow connection of power and signal wires up to 2.5 mm²

Manufacturer: Lumel S.A.

Data sheet Instruction manual

P17G Passive Isolator

The P17G passive separator in a 6.2mm width housing, serves as isolator and filter of 0(4)...20 mA standard signals without the need for an additional supply voltage.

For the isolation of measurement signals e.g. PLC from field instruments.
No auxiliary supply voltage required.
Thin casing - 6.2 mm.
Standard DC current output signal 0/4 - 20 mA.
Mountis on a standard TS35 DIN rail.

Manufacturer: Lumel S.A.

Data sheet Instruction manual

S4AI Four analog inputs to Modbus module

The S4AI module from Lumel is designed to convert analog signals into RS485 / Modbus RTU format and offers a simple and economical method of adding extra inputs to PLCs, HMIs and any equipment that has a Modbus master functionality.
It also is capable of mathematical operations as well as having alarm outputs and internal timers.
Multiple units can be connected side by side to form multichannel blocks using an internal bus system that eliminates the need for wiring

Converts 4 analog signals (standard signals, resistance thermometers, thermocouples) into RS-485 Modbus.
Programmable individual characteristics of the inputs.
Operation in Modbus Slave mode.
Side by side module connection using internal RS-485 connections to form a multi-channel block.
Two programmable alarm outputs.
Mathematical functions: addition, subtraction, multiplication, division, average, minimum, maximum.
Two virtual measurement channels to perform mathematical functions on the channels or between the measurement channels.
Programmable operating time counters.
Mountable on standard TS35 DIN rail.
Galvanic isolation between inputs divided into 2 groups of 2 inputs
Can be configured via the USB port with no external power required

Manufacturer: Lumel S.A.

Data sheet Instruction manual

S4AO Modbus to four analog outputs module

The S4AO module from Lumel is designed to convert RS485 / Modbus RTU signal into standard analog signals into and offers a simple and economical method of adding extra outputs to PLCs, HMIs and any equipment that has a Modbus slave functionality.
Multiple units can be connected side by side to form multichannel blocks using an internal bus system that eliminates the need for wiring

Converts RS-485 MODBUS data into standard analog signals in 4 channels (current 0/4...20 mA or voltage 0...10 V).
Side by side module connection using internal RS-485 connections to form a multi-channel block.
Two independent communication ports for operation as Master/Slave
Master Modbus function dedicated to read out data from other RS-485 devices and to scale analog values.
Slave Modbus function to set the signal on analog outputs.
Outputs working time counter.
Mounting on a standard TS35 DIN rail.
Galvanic isolation between 2 groups of 2 outputs.
Can be configured via the USB port with no external power required

Manufacturer: Lumel S.A.

Data sheet Instruction manual

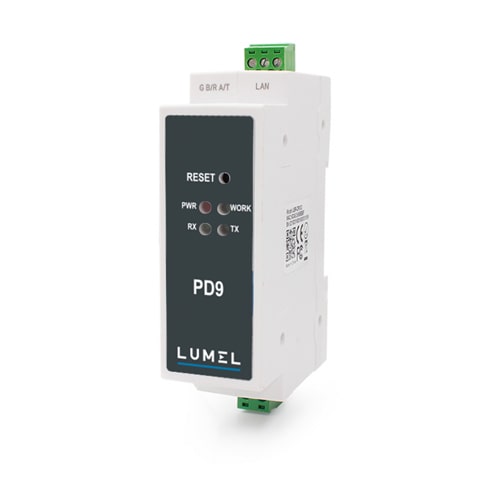

PD9 RS-485/ Ethernet converter

The PD9 module allows transparent data transmission between its Ethernet interface and serial port and the protocol converter. The serial port is the RS485 data and in the Ethernet interface, it is the net data package. Users can configure the parameters via the webpage or set-up software, set one time and save forever.

Two communication interfaces: 1x RS485, 1x Ethernet WAN/LAN
Easy configuration the parameters via the webpage or set-up software
Compact size, DIN rail mounted
Working mode: TCP server, TCP client, UDP server, UDP client
Modbus RTU to TCP conversion, Modbus Polling
DHCP support, IP dynamic or static
Watchdog function
Wide range of working temperature from -40 to 85°C
Galvanic isolation between inputs divided into 2 groups of 2 inputs

Manufacturer: Lumel S.A.

Data sheet Instruction manual

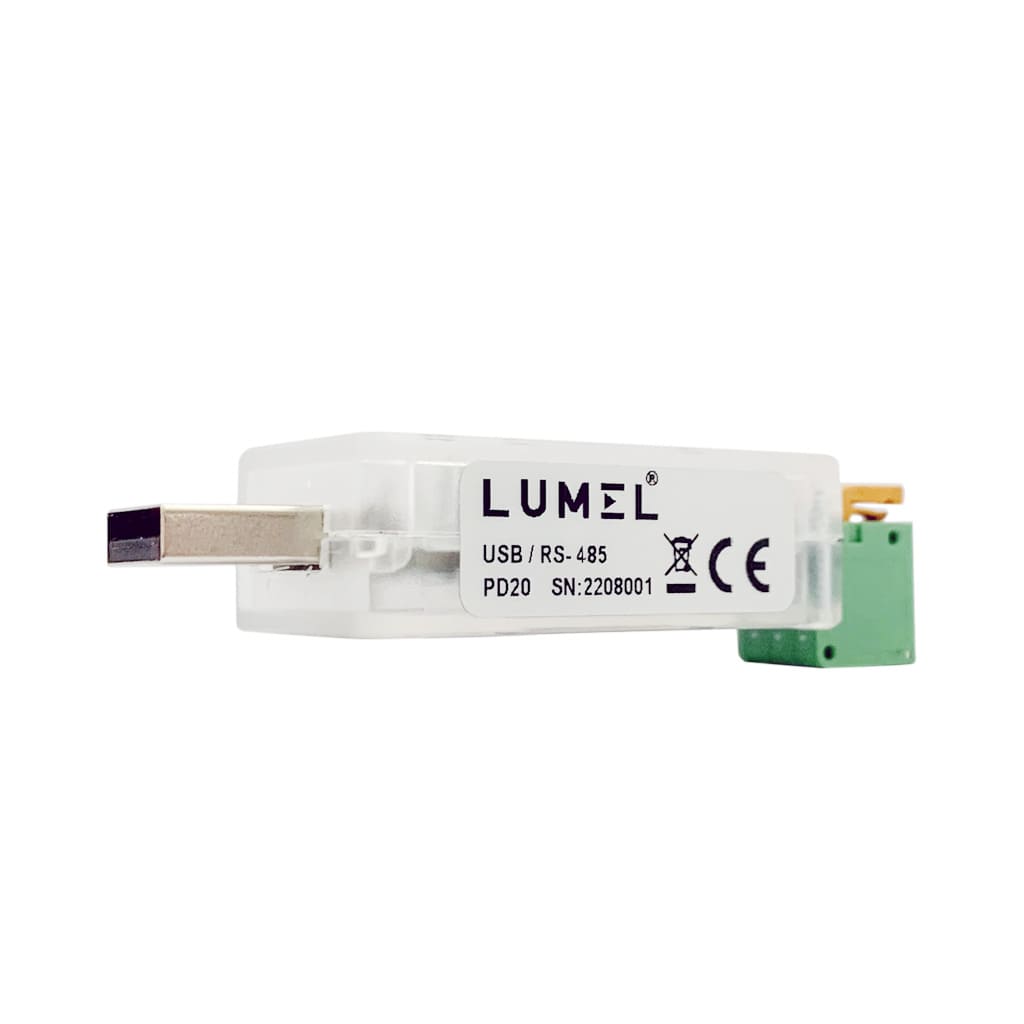

PD20 USB/RS-485 INTERFACE CONVERTER

In PD20 converter are used 2 interfaces (USB, RS485) - galvanically isolated.
USB interface (type A) – destined for the device communication with the computer.
RS-485 interface - destined for the communication with devices from the object side.
Compliance with the standard USB 1.1 and USB 2.0.
Data transmission rate up to 115.2 kbps.
Support virtual serial port (COM).
Bi-directional data transmission (half duplex).
Device supplied from USB port.
External dimension: 76 x 25 x 20mm.
Converter does not interfere into the structure of data transmission and is compatible with many industrial communication protocols.
